BEST-IN-CLASS IMAGE RESOLUTION FOR GREATER DETAILS

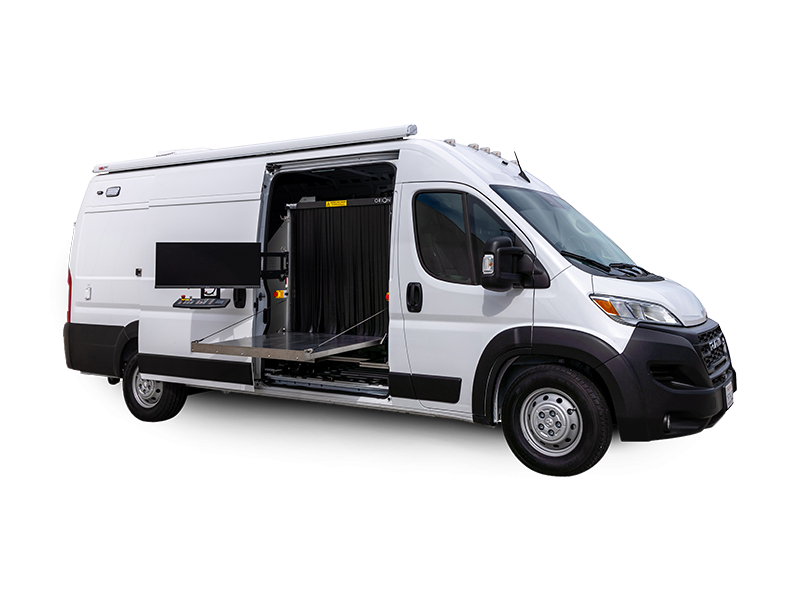

The only dual-view X-ray system to deliver best-in-class image quality with 40 AWG wire resolution, in a van platform with a large tunnel size.
DUAL-VIEW IMAGING FOR IMPROVED THREAT DETECTION

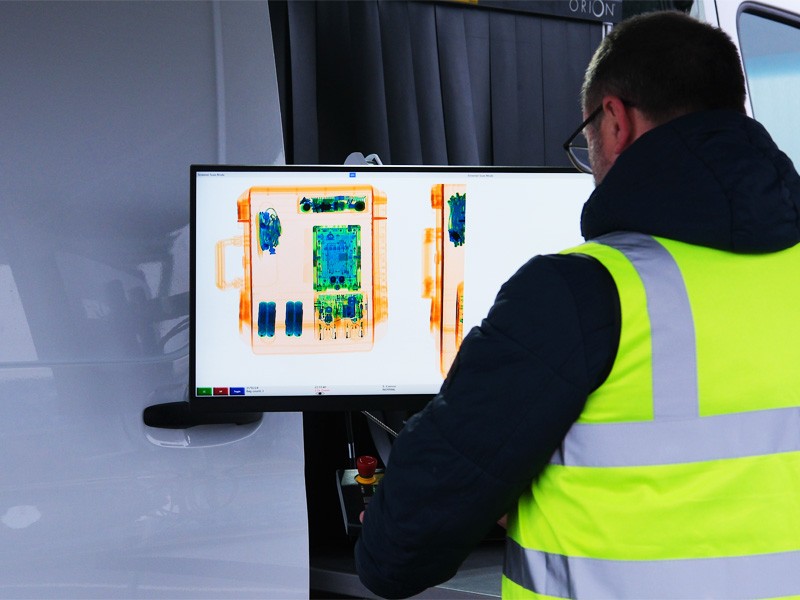

Dual-view imaging results in more efficient operations and improved threat detection by providing operators with two simultaneous orthogonal X-ray images of a scanned object, reducing the need for operators to rotate the object to take a second scan.
MATERIAL DISCRIMINATION TO DISTINGUISH ORGANIC AND NON-ORGANIC OBJECTS
Material discrimination displays organic materials and non-organic materials in separate colors providing more detailed information about the objects being screened.
OPERATOR ASSIST TOOLS TO SUPPORT IMAGE ANALYSIS
TARGETTM Highlights regions of an X-ray image that could be eplosive material.
NARCSCANTM Highlights areas of an image that might contain narcotics.
DENSITY THREAT ALERT (DTA) Visually highlights high-absorbing regions of the X-ray image.
Specifications
X-ray System Specifications
TUNNEL
1,050 mm x 1,050 mm (41.3 in x 41.3 in)
LENGTH
1,710 mm (67.3 in)
WIDTH
1,950 mm (76.7 in)
HEIGHT
1,560 mm (61.4 in)
WEIGHT
1,200 kg (2,645 lbs)
