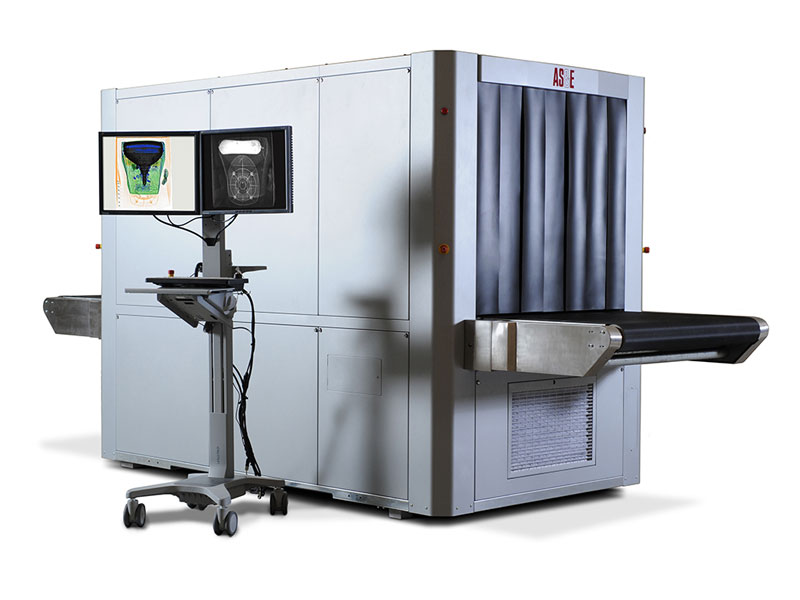

Transmission plus Z Backscatter® X-ray inspection in one system.
The ground-breaking Gemini® system combines a dual-energy tranmission X-ray with a Z Backscatter® X-ray in one system.
It detects both metallic (inorganic) and organic threats—even in cluttered environments—for more comprehensive detection than transmission-only systems.
Additional Backscatter technology for enhanced threat detection
Increase throughput with faster image interpretation
Intuitive user interface
Ergonomic operator's console
Multi-technology system with dual-energy transmission and Backscatter
Same footprint as transmission-only systems
GROUND-BREAKING PARCEL INSPECTION
Ground-breaking Gemini® parcel X-ray inspection system combines dual-energy transmission with patented Z Backscatter® technology for the most comprehensive threat detection available for parcel, baggage, and mail screening. The Gemini® system’s unique capability to detect both metallic and non-metallic threats—even in cluttered environments—makes it an invaluable inspection tool for security officials.
POWERFUL COMBINATION OF TECHNOLOGIES
The power of the Gemini® system lies in its ability to simultaneously detect both inorganic and organic materials by combining dual-energy transmission and Z Backscatter® X-rays two complementary, advanced, and commercially proven technologies. Together, they provide the most information available about the contents of a parcel.
MULTI-TECHNOLOGY
The Gemini® system’s dual-energy transmission X-rays generate a high-resolution image in which metallic threats, such as guns and knives, are easily detected and fine details, such as tiny wires that could indicate an improvised explosive device, can be discerned. Dual-energy transmission technology uses two X-ray energy levels to determine the “effective” atomic number of objects in the parcel and then colorizes the image based on material type.
The Gemini® system’s Z Backscatter® X-rays generate a photo-like image in which organic materials—such as sheet, bulk, and liquid explosives, narcotics, and plastic weapons—are bright white. The easy-to-interpret images produced by Z Backscatter® technology also help to reduce operator fatigue.
Specifications
Tunnel Opening (WxH)
1050 mm x 1025 mm (41.3 x 40.3 in)
Length
4200 mm (165.4 in)
Width
1500 mm (59.0 in)
Height
2030 mm (80 in)
Tunnel Size
Width: 105 cm (41.3 in), Height: 102.5 cm (40.3 in)
